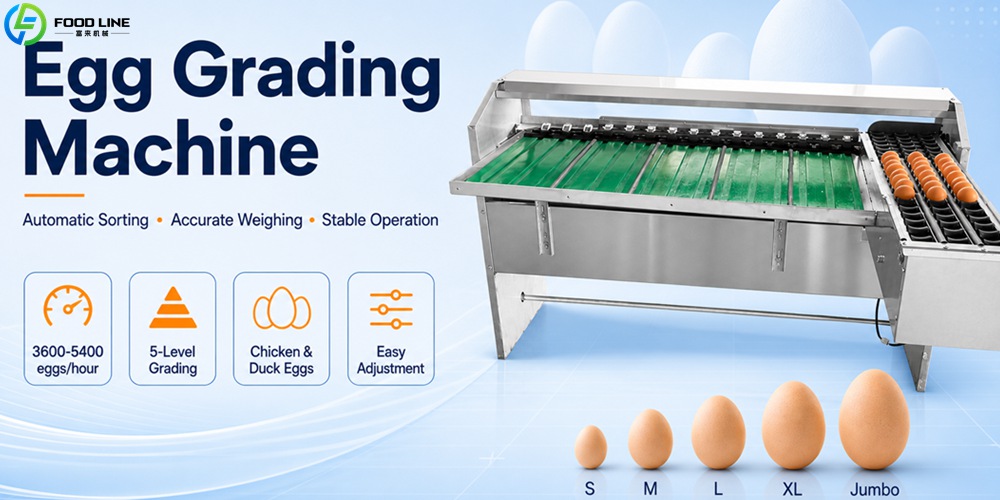

When customers compare egg grading machine prices, they are not only comparing the machine cost. They are comparing grading accuracy, production capacity, machine durability, after-sales support, and long-term operating value. Foodline egg grading machine is suitable for grading both chicken and duck eggs. The equipment sorts eggs into 5 grades, and the grading standards can be adjusted according to specific requirements. Request factory prices! WhatsApp/Phone: +86 13838385752.
Parameters of Egg Sorting Machine
Model
FL – ES03
Sorting Speed
≤5400 Pcs/H
Sorting Level
5
Power
120W
Accuracy
±0.2g
Voltage
220V
Working Mode
Continuous
Weight
180kg
Overall Dimension
1620*1820*1000
Factory Prices! WhatsApp/Phone: +86 13838385752.
automatic egg sorting machine
egg grading machine
Working Principle of the Egg Grading Machine
This equipment utilizes a lever-based weighing mechanism and a blade-style conveying structure. During operation, eggs are transported along the conveyor system; rubber wheels automatically adjust the eggs’ alignment before they enter the weighing zone.
The machine features an arc-shaped structure and a chain drive system, ensuring the eggs travel along a fixed path. As the eggs pass over the weighing platform, the system weighs them against preset grading standards and subsequently diverts them into the appropriate collection trays or grading channels.
Additionally, the system employs a differential mechanism to adjust the conveyor line’s operating speed while maintaining the same processing capacity per unit of time.
Automatic Egg Sorting Machine Details
Chassis Material: The frame features cold-rolled steel plate and stainless steel construction, undergoes CNC processing, and receives electrostatic spraying and polishing finishes. A bending process reinforces the structure to ensure operational stability.
Component Materials: Molded plastic parts, fiberglass components, and aluminum alloy profiles are used, ensuring high component quality.
Conveying System: The equipment uses a paddle-style conveying system and a lever-type weighing mechanism. These features deliver greater precision in both transport and weighing, and users can adjust various parameters according to specific grading requirements.
Grading Accuracy: The chain drive and fixed running track weigh eggs in sequence, reducing missed or incorrect grading.
Efficiency: This equipment processes 3600–5400 eggs per hour, and customers can adjust the capacity to meet their needs.
Low Breakage Rate: The rubber wheel conveyor system and adjustable speed reduce collisions between eggs. The rolling speed of the eggs as they fall onto the collection tray is adjustable.
About Foodline
Selecting the right equipment is crucial for operators; we recommend suitable configurations based on your specific equipment needs and budget. Our equipment features durable materials and sound manufacturing processes, and we provide comprehensive 24-hour support—from installation and operation to after-sales service. Welcome to consult! WhatsApp/Phone: +86 13838385752.
