If you are looking for a biscuit manufacturing machine for producing soft biscuits, butter biscuits, cookies, small round biscuits, square biscuits, and other shaped biscuit products, this 100kg/h semi automatic biscuit production line is a practical choice. Get factory prices! WhatsApp/Phone: +86 13838385752.
Biscuit Production LineParameters
Equipment Name
Power (kW)
Dimensions (mm)
Net Weight (kg)
Voltage (V)
Capacity / Output
Spiral Mixer
6.55
1150×700×1400
430
—
50kg flour / 130L bowl
Cookie Forming Machine
3.5
1240×980×1310
250
220
100–220 pcs/min
Hot Air Rotary Rack Oven
48 (+2.5 drive)
2000×1800×2200
1300
380 (3N/50Hz)
100 kg/h (bread)
Pillow Packaging Machine
—
—
—
—
35–120 bags/min
Factory Prices! WhatsApp/Phone: +86 13838385752.
cookie production line
biscuit production line

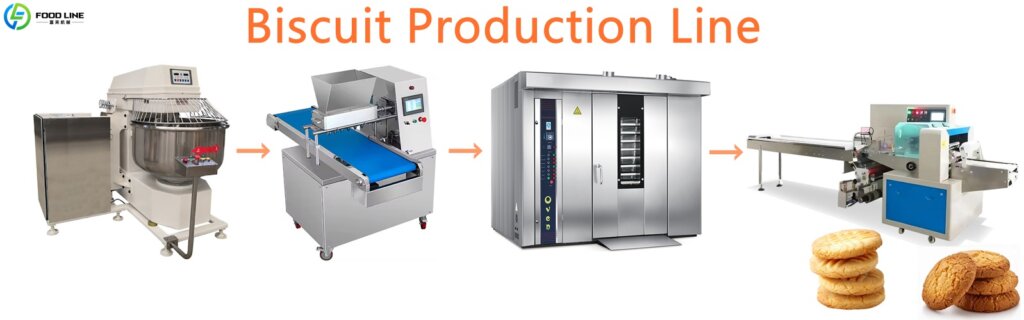

Working Flow of Biscuit Manufacturing Machine
First, flour, sugar, oil, water, and other ingredients are added to a dough mixer. After mixing, the dough is fed into a cookie forming machine.
The forming machine presses or shapes the dough into the desired cookie shape.
The cookies are then baked in a 32-layer hot air oven.
After baking and cooling, the finished cookies are packaged using a pillow-type packaging machine for retail or bulk distribution.
Features and Functions of Biscuit Making Equipment

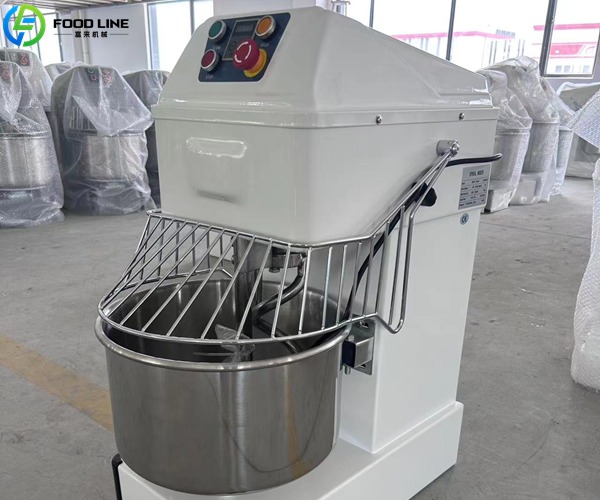

Spiral Mixer
This dough mixer uses a tilting drum design. Its operation involves two steps: the internal mixing paddles rotate at a specific speed, mixing, kneading, and stretching the flour, water, sugar, oil, yeast, and other ingredients to form dough. Once the dough is kneaded, the entire mixing drum tilts forward or sideways, using gravity to pour the dough out.
Cookie forming machines are core equipment in production lines. They can shape dough into cookies of various shapes using customized molds. Customers can choose the pattern, size, thickness, and shape of the molds according to their needs.
This oven can bake 32 baking trays at a time, which is much more efficient than ordinary rack ovens. The oven features a hot air circulation system, and the racks rotate automatically to ensure even heating. The temperature control range is from room temperature to 300℃, making it suitable for a variety of products.
It can automatically wrap products in packaging film and seal them. Packaging speed is 35–120 bags/minute, suitable for assembly line production. The bag qualification rate is ≥97%, with low waste. The sealed packaging effectively prevents moisture, dust, insects, and oxidation.
FAQ
What is the production capacity of this cookie production line?
The standard capacity is 100 kg/hour. We can also provide customized capacities, such as 150 kg/hour, 200 kg/hour, 300 kg/hour, 400 kg/hour, 500 kg/hour, 600 kg/hour, and 1000 kg/hour.
Is this production line fully automatic?
This model is semi-automatic and requires manual operation. If you require a fully automatic production line, we can also provide the corresponding configuration.
What energy sources does the oven on this production line support?
Heating methods include electricity, gas, and diesel. We will recommend the most suitable heating method based on your local energy conditions.
Can this machine produce cookies of different shapes?
Yes. The biscuit manufacturing machine can be equipped with different molds to produce round, square, flower-shaped, rectangular, and custom-shaped cookies.
Foodline offers complete production line solutions, not just individual machines. From cookie-style confirmation, capacity selection, oven configuration, factory layout, machine manufacturing, and installation guidance to after-sales service, we help clients build the right production line. We can recommend semi-automatic or fully automatic configurations based on your budget and production schedule. Whether you are starting a new business or upgrading an existing factory, we can provide professional solutions for your products and markets.
Contact us now for a personalized quote! WhatsApp/Phone: +86 13838385752.
