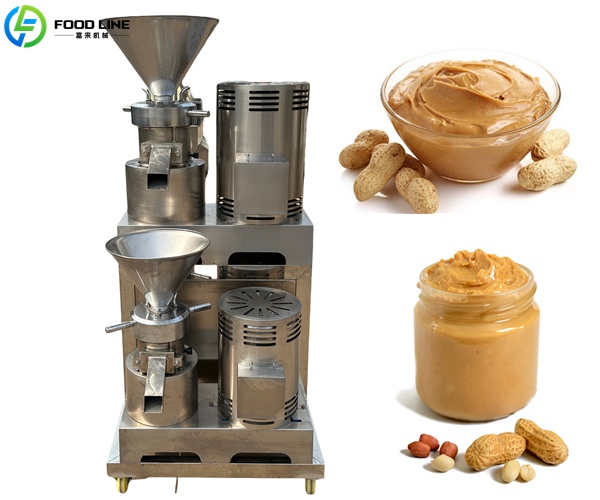

This peanut butter grinding machine features wet ultrafine processing technology. It incorporates homogenization, ball milling, and three-roll grinding functions, ensuring both grinding efficiency and product quality. Request a quote! WhatsApp/Phone: +86 13838385752.
Parameters of Commercial Peanut Butter Grinder
Model
FL-130
FL-85
Material Fineness (μm)
-70
-70
Motor Power (kW)
11
5.5
Voltage (V)
380
380
Output (Gravity Flow) (t/h)
0.2-4
0.2-2
No-Load Speed (r/min)
3000±100
3000±100
Dimensions (cm)
100×38.5×105
80×35×85
Weight (kg)
275
170
Factory Prices! WhatsApp/Phone: +86 13838385752.
sauce grinding device
peanut butter grinding device
Working Principle of the Industrial Nut Butter Grinder
Shearing and Grinding: As material flows between two serrated surfaces—one stationary and the other rotating at high speed—shearing and frictional forces arise, breaking down and refining the particles.
Vibration and Vortex Mixing: This action disperses and emulsifies the material, yielding a product with a uniform texture.
Functionality: This equipment achieves fine grinding, mixing, and emulsification in a single processing pass, thereby reducing processing time and enhancing production efficiency.
Features of the Peanut Butter Grinding Machine
Grinding Technology
This machine employs a wet-process ultrafine particle processing technology, capable of reducing material particle size to 70 microns while achieving a homogenization rate of up to 95%.
Speed
Operators can adjust the rotational speed of the grinding head based on the specific characteristics of the material and processing requirements. An interchangeable explosion-proof motor lets the unit adapt to various processing environments.
Materials
Stainless steel makes up all components that contact food materials, ensuring both hygienic safety and corrosion resistance. The stationary and rotating grinding discs also use stainless steel and incorporate a specialized tooth profile structure, tailored specifically to the characteristics of the materials being processed.
Safety Safeguards
Safety measures include an overload protection device as well as strict operating protocols, designed to ensure the personal safety of operators and the long-term operational reliability of the equipment.
How should a sauce grinding machine be maintained after use?
After use, the equipment must be thoroughly cleaned to prevent material residue from accumulating inside the unit, which could cause the mechanical seal to seize and result in leakage.
Besides peanut butter, can I produce other products?
Yes. The paste grinding machine is suitable for processing a wide range of products, including peanut butter, sesame paste, bean paste, red bean paste, soybeans, peanut milk, protein drinks, soy milk, dairy products, malted milk, flavorings, various beverages, aloe vera, cell-wall disrupted pollen, pineapple, fruit tea, ice cream, mooncake fillings, cream, jams, fruit juices, emulsified chicken bone paste, emulsified pork skin, and other animal skins requiring fine grinding.
Foodline – Factory Price
Foodline is a machinery manufacturing company with 20 years of experience. Our peanut butter grinding machines can be operated as standalone units or integrated into a peanut butter production line. Our product managers provide 24-hour support, and our products have been exported to numerous countries and regions. We possess extensive experience in both manufacturing and international trade. We invite you to contact us for a quotation! WhatsApp/Phone: +86 13838385752.
