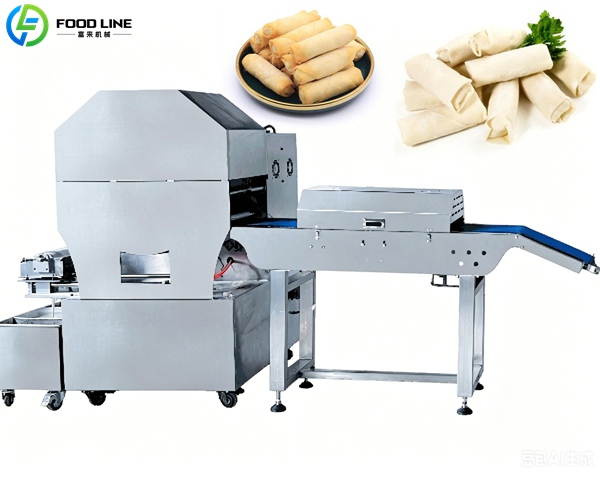

The spring roll wrapper machine produces high-quality spring roll wrappers with precision. It evenly coats a large heated roller with batter, cooks the wrapper, automatically peels it off, and cuts it into uniform square sheets. Inquiries are welcome! WhatsApp/Phone: +86 13838385752.
Parameters of Lumpia Wrapper Maker
Model
Automatic Spring Roll Sheet Machine
Machine Size
3200 × 2700 × 2300 mm
Roast Wheel Size
Φ600 × W320 mm (usable width 300 mm)
Heat-resistant Range
Up to 480°C
Main Engine Power
0.75 kW (50/60Hz)
Conveyor Belt Power
0.55 kW
Voltage
3P 220/380V
Capacity
500–10000 pcs/hour
Factory Prices! WhatsApp/Phone: +86 13838385752.
spring roll wrapper device
Working Principle of the Spring Roll Wrapper Machine
Batter Supply System: A speed-controlled system automatically pumps liquid batter into the forming unit.
Rotary Drum Coating: The machine applies batter to the surface of a high-temperature rotating baking drum.
High-Temperature Baking: The drum is heated to a set temperature (up to 480°C), rapidly cooking the batter and forming a thin sheet.
Peeling System: Once baked, the wrapper is automatically peeled from the drum surface without tearing.
Conveying and Discharge: The finished spring roll wrappers are discharged via a conveyor belt for subsequent processing.
The machine utilizes an SSR temperature control system with a precision of ±1°C. This design ensures uniform heating of the wrappers, preventing both scorching and undercooking.
Thickness Adjustment
The spring roll wrapper machine supports a thickness adjustment range of 0.28–0.6mm. In addition to spring roll wrappers, it can produce various specifications of wrappers and other flat dough-based products.
Production Capacity
The hourly output ranges from 500 to 10,000 wrappers.
Stainless Steel Construction
All food-contact parts are made of stainless steel, ensuring compliance with hygiene standards and ease of cleaning.
Energy-Efficient Design
By optimizing the heating and motor systems, the machine reduces energy consumption while maintaining high output.
Hand-making dough wrappers is time-consuming; this automated equipment can replace multiple manual workers.
Quality
The machine produces wrappers of uniform thickness, reducing breakage rates and enhancing market competitiveness.
Production Capacity
Production capacity is adjustable to meet your specific needs, making it suitable for businesses ranging from small-scale operations to large enterprises.
Operation
The control system features a clear interface, and daily cleaning and maintenance are simple and convenient, minimizing downtime.
Why Choose Foodline
20 years of experience
Exports to 30+ countries
CE and ISO certified
Professional R&D team
One-stop service
You can choose between fried spring rolls and standard spring roll wrappers based on your requirements; if you opt for fried spring rolls, the production line can be integrated with our continuous fryer. Please contact us for a quote! WhatsApp/Phone: +86 13838385752.
