An automatic shrimp peeler can be used for shelling various types of shrimp. It can process a variety of shrimp, including tiger prawns, freshwater prawns, whiteleg shrimp, woolly shrimp, small river shrimp, mud shrimp, and white shrimp. Get a factory quote! WhatsApp/Phone: +86 13838385752.
Prawn Peeling Machine Parameters
Model
80
150
300
Capacity (raw shrimp)
80 kg/h
150 kg/h
300 kg/h
Material
SUS304 Stainless Steel
SUS304 Stainless Steel
SUS304 Stainless Steel
Total Power
2.2 kW
3.0 kW
0.75+4.0+0.75 kW (5.5 kW total)
Voltage
220/380V (with VFD)
220/380V (with VFD)
220/380/415/440V (with VFD)
Elevator Dimensions (L×W×H)
2200×1200×2100 mm
2200×1500×2100 mm
2890×1650×2560 mm
Sheller Dimensions (L×W×H)
2300×1500×1800 mm
2300×2060×1800 mm
3460×2390×2200 mm
Conveyor Dimensions (L×W×H)
2000×600×800 mm
2000×600×800 mm
2580×640×800 mm
Factory Prices! WhatsApp/Phone: +86 13838385752.
automatic shrimp peeling equipment
prawn peeling device
Automatic Shrimp Peeler Details

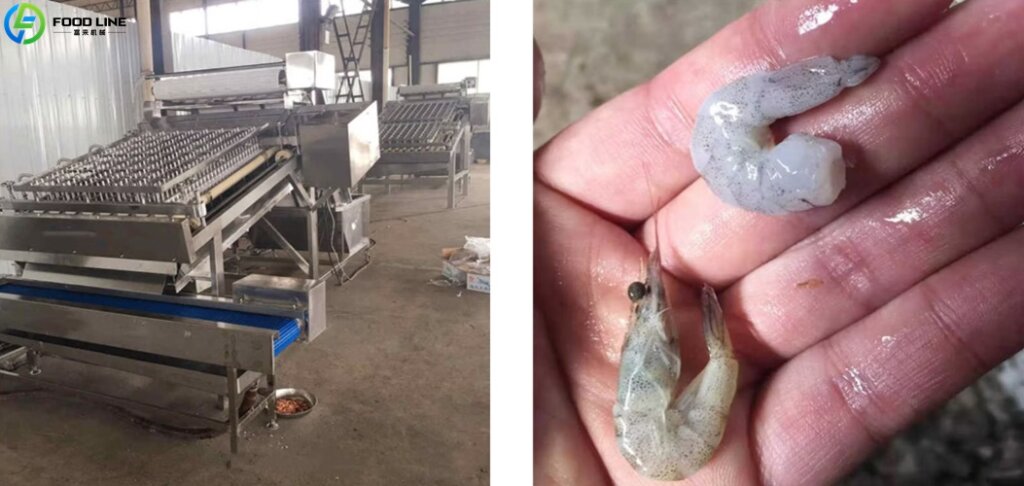

Meat Yield
Typically, one jin of shrimp yields 5 to 6 taels of shrimp meat, resulting in a very low loss rate. Under normal production conditions, there is virtually no significant waste of raw materials associated with the equipment.
Water System
The water system serves an auxiliary function during equipment operation. The water flow assists in moving the shrimp internally toward the peeling mechanism while simultaneously providing cleaning and lubrication by washing away impurities and residues.
Water Consumption
The equipment consumes approximately 1 ton of water per hour. An optional circulating water treatment system is available to enable water reuse through filtration and purification.
304 Stainless Steel Construction
The manufacturer builds the entire machine using 304 stainless steel for both the main structure and critical drive components. They even produce detailed parts, such as bearings, in stainless steel to avoid rust and contamination risks.
Production Process
The complete process comprises a washing system, flash-freezing system, thawing system, feeding system, primary shelling system, secondary processing system, individual quick freezing (IQF) system, and packaging and warehousing system.
Foodline is a manufacturer specializing in food processing machinery, with extensive experience serving the seafood, meat, and fruit & vegetable processing sectors. Leveraging years of expertise in equipment R&D and export, we provide our clients with efficient, hygienic, and reliable machinery. Shrimp peeling machines are typically paired with bubble washing machines, which handle the initial processing stage. Please contact us for a tailored solution and a quote! WhatsApp/Phone: +86 13838385752.
