The water filling line encompasses blow molding, conveying, rinsing, filling, capping, inspection, labeling, coding, drying, and packaging stages. This production line has a capacity of 6,000 bottles per hour and is capable of handling purified water, mineral water, and other non-carbonated beverages. Get prices! WhatsApp/Phone: 86 13838385752
Production Process for Bottle Water Packaging Machine
Blow molding → Air conveying → Rinsing, filling, and capping → Inspection → OPP labeling → Bottle conveying → Drying → Coding → PE film heat-shrink packaging → Finished product
This unit integrates rinsing, filling, and capping functions. It is equipped with 18 rinsing positions, 18 filling valves, and 6 capping heads. The production capacity is 6,000 bottles per hour for 500ml bottles and 3,000 bottles per hour for 1,500ml bottles; actual output depends on factors such as the product and bottle size. It utilizes a “neck-hanging” conveyor design to ensure smooth operation and features automatic liquid level control and variable frequency speed regulation.

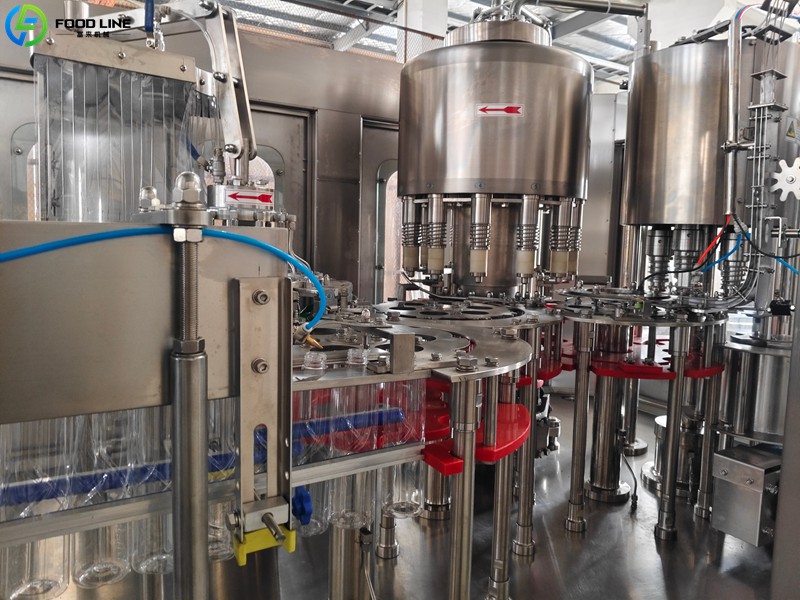

details of liquid filling device
Capacity
6000BPH at 500ml; 3000BPH at 1500ml
Filling material
Drink water
Weight
2400KG
Size
2650x2000x2050mm
Bottle application
Plastic PET bottle, PE screw cap Diameter: 40-100mm, height: 130-310mm
Conveyor form
Air conveyor
Washing station (SUS304)
18PCS, mechanical hand with backwater device
Filling station (SUS304)
18PCS, new type of filling valve
Capping station (SUS304)
6PCS, magnetic capping technique, no damage to caps
Total power
2.2Kw
Start Your Bottled Water Project
Air Conveyor
The air-conveying system suspends PET bottles by gripping their neck rings and transports them to the filling unit using a controlled airflow. The airflow rate is approximately 1,200 m³/h. By conveying the bottles via their neck rings, the system avoids the issue of empty bottles tipping over.

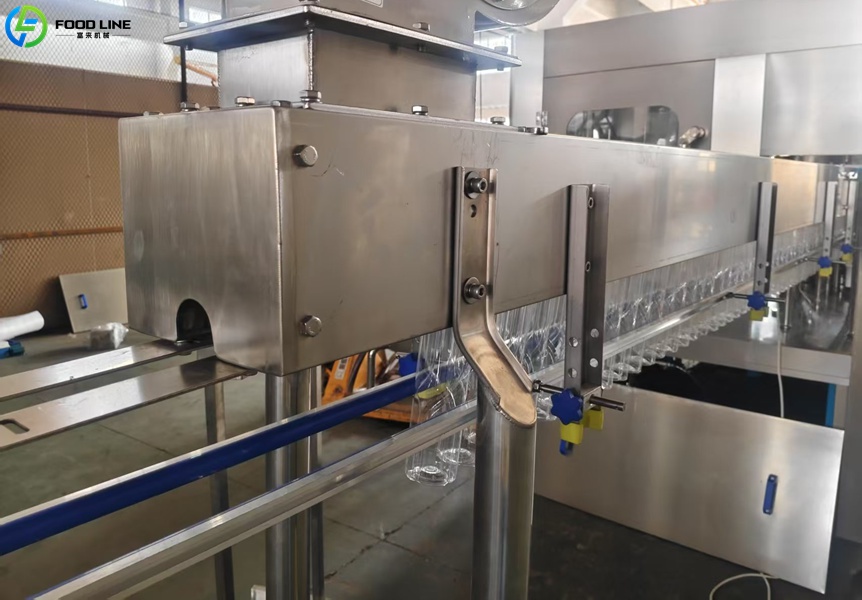

air conveyor device
Power
1.5KW*1SET
Air pressure
1210Pa
Air quantity
1200m³/h
Voltage
380V/50Hz
Air conveying channel is made of SUS304
Length 6M
Ask About Bottle Compatibility
Light Checker
After the filling and capping processes, the bottles pass through the visual inspection station. This station features an illuminated inspection zone, enabling operators to identify visible foreign matter, liquid anomalies, sealing issues, or bottle defects.

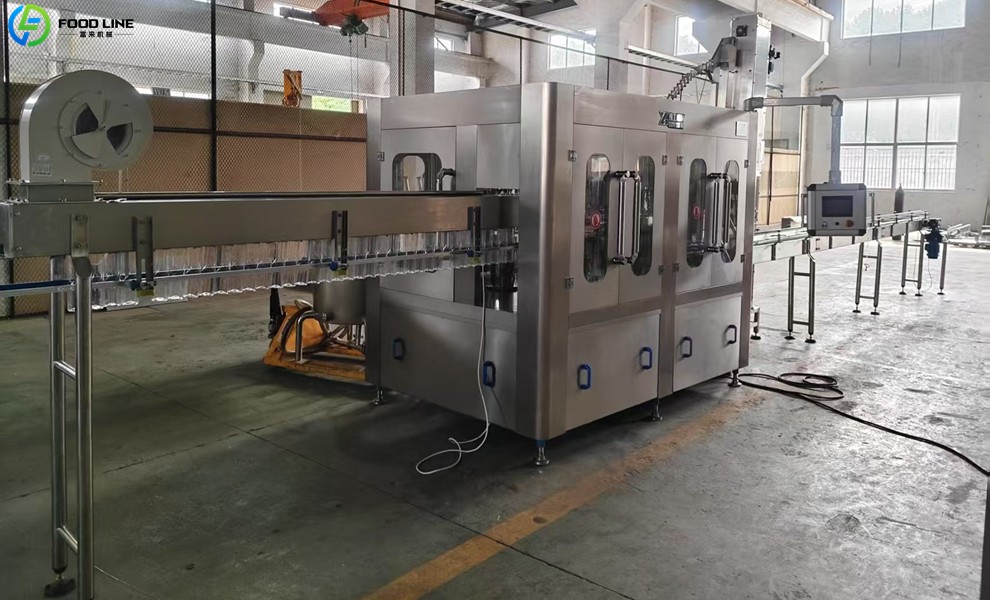

filling monobloc device
Power
40w
Dimension
800*130*300mm(L*W*H)
Get a Quote for the Water Filling Line
Bottle Drying Machine
Drying is a crucial stage in the liquid filling line. The equipment utilizes angled, narrow-slot air nozzles to direct airflow onto the bottle surface to remove residual moisture. It features a 304 stainless steel body, a blower, and an automatic air filter.

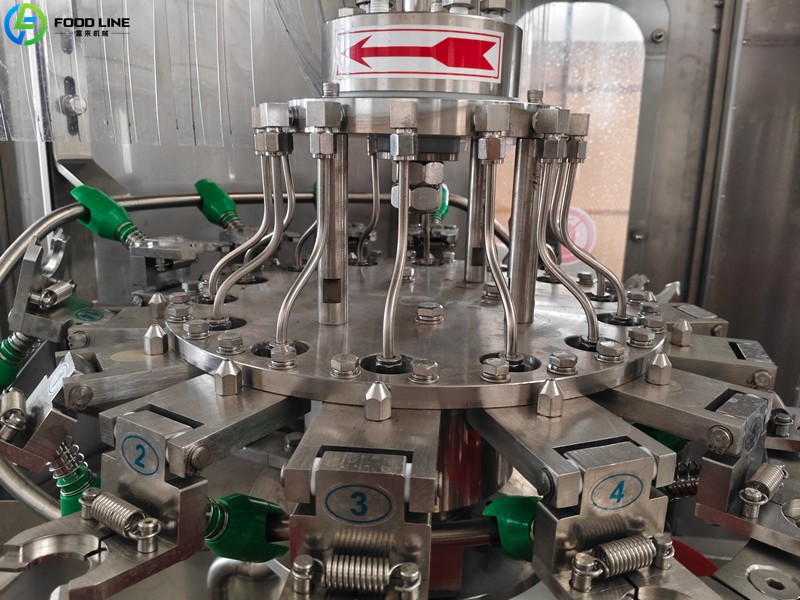

cleaning section of liquid filling device
Material
SUS304
Air wind machine
1 sets, Automatic
Power
7.5KW
Air filter
1set, Automatic
Size
1500×700×1650mm
Talk to a Filling Line Expert
Laser Marking Machine
It can print production dates, batch numbers, traceability codes, and other information on the bottle body, cap, or label. The marking machine uses a QR code scanning system, a built-in control screen, photoelectric product detection, and an air-cooling system. Utilizing laser coding technology, it operates without the need for consumables such as ink.

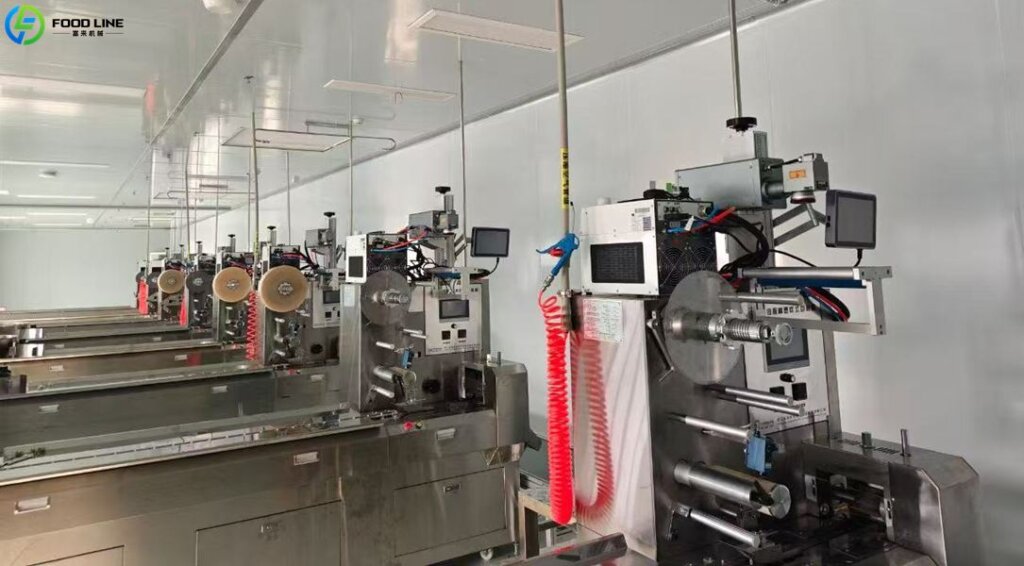

laser marking device
Laser
Enclosed metal radio frequency carbon dioxide laser generator
Continuous output power
30W
Laser wavelength
10.6um
Marking speed
≤10000mm/s
Master control
High integrated motherboards, built-in 7 inch screen
Cooling system
Wind cooling
Focus camera
Focal length 130mm
Request Pricing and Technical Details
OPP Hot-Melt Glue Labeling Machine
An infeed screw spaces the bottles, a star wheel positions them, and the machine rotates them during labeling. After cutting each label, a vacuum drum transfers it to the bottle body, while hot-melt adhesive secures the label at its leading and trailing edges.

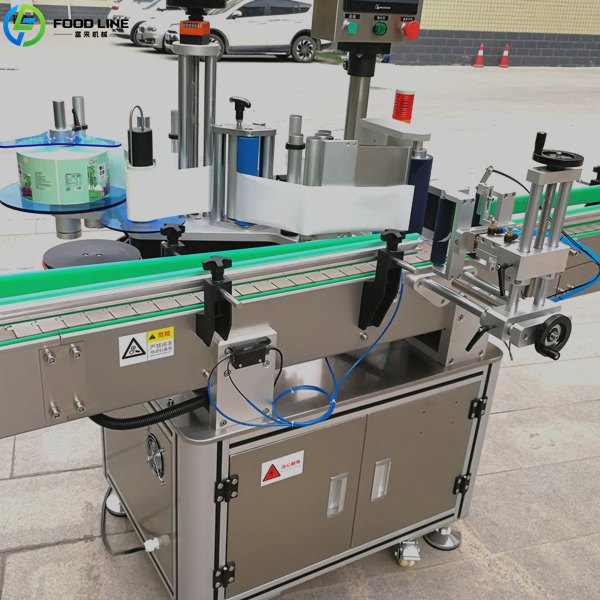

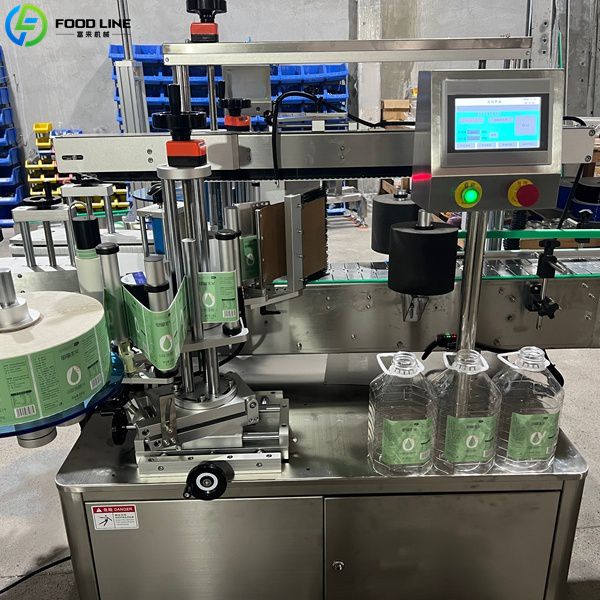

Screw-driven bottle feeding into star wheel, labeling during rotation
Label Feeding
High-speed servo OPP film label feeding system
Get a Customized Solution
Shrink Wrapping Machine
At the end of the filling line, PE film is used for wrapping. The equipment automatically handles bottle infeed, grouping, film feeding and cutting, heat shrinking, cooling, and finished product discharge. The shrink tunnel utilizes hot-air circulation and a multi-layer thermal insulation design.

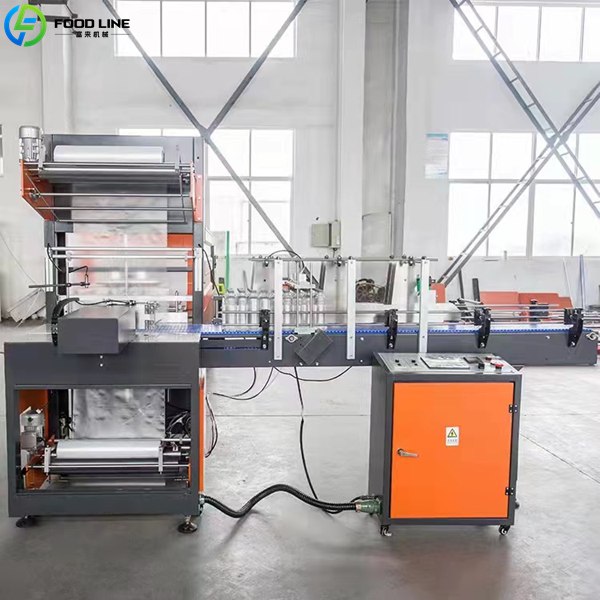

orange shrink wrapping device

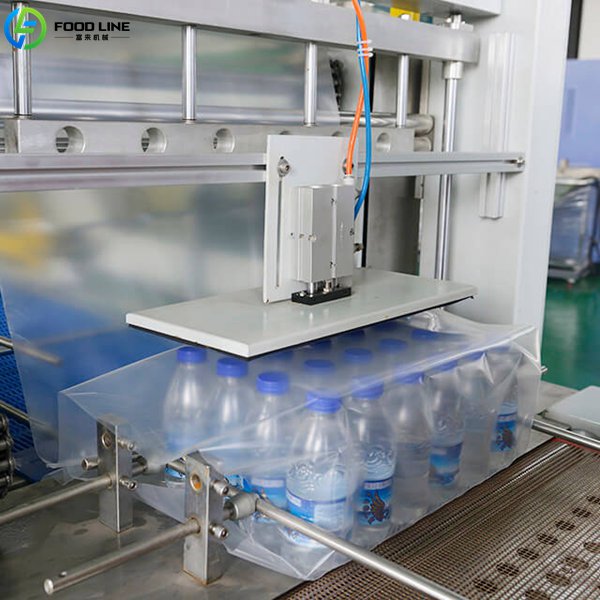

shrink wrapping device detail
Input Power
15Kw
Can supply
380V,3N,50Hz
capacity
8-10 Packs/min
Dimension
5050×3100×1800mm
Can bottles diameters
25mm～120mm
Can labels length
30mm～250mm
Height of Conveying Belt
750mm～1100mm
Can films
PE
Contact Us! WhatsApp: 86 13838385752 ✉️
Considerations Before Purchasing an Automatic Liquid Filling Line
What is the available floor space?
What are the bottle and cap specifications?
What packaging configuration is used?
What is the target output?
What is the local supply voltage?
What is the water quality?
This production line is primarily used for filling purified water and mineral water. Depending on your specific product and hygiene requirements, it can also be configured for the production of other non-carbonated beverages. Factors determining production output include bottle capacity, label dimensions, packaging format, and staffing levels.
