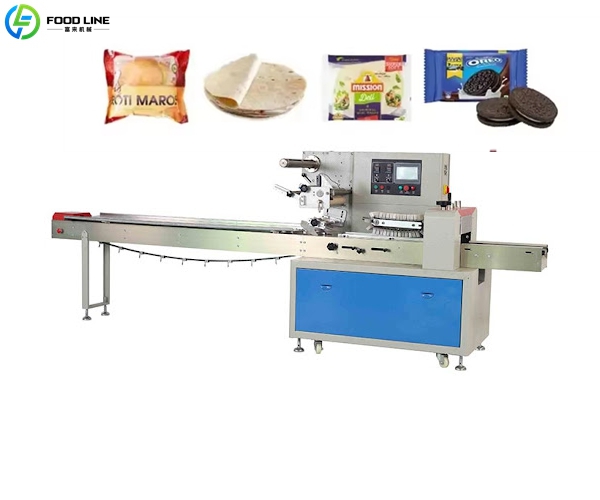

Horizontal Packaging Machine for Food Processing

The horizontal packaging machine is a type of automated packaging equipment and the most widely used packaging solution in food production lines. It is capable of producing—at high speed and with consistent stability—neatly sealed, pillow-shaped packages. We welcome your inquiries! WhatsApp/Phone: +86 13838385752.

Parameters of Pillow Packaging Machine

Parameter	Model 120	Model 150	Model 180	Model 210
Max Film Size	120	150	180	210
Bag Length (L)	60mm – 320mm	100mm – 450mm	150mm – 530mm	180mm – 600mm
Product Width (W)	10mm – 200mm	10mm – 200mm	10mm – 2000mm	10mm – 200mm
Product Height (H)	5mm – 35mm	5mm – 70mm	50mm – 110mm	80mm – 135mm
Packing Speed	30 – 150 packs/min	30 – 150 packs/min	30 – 130 packs/min	30 – 130 packs/min
Film Type	PVC, POF, and other heat shrink films	PVC, POF, and other heat shrink films	PVC, POF, and other heat shrink films	PVC, POF, and other heat shrink films
Power Consumption	3.6KW + 16.5KW	3.6KW + 16.5KW	3.6KW + 16.5KW	3.6KW + 16.5KW
Power Supply	Main Unit: 220V, 50Hz; Shrinking Tunnel: 380V, 50Hz	Main Unit: 220V, 50Hz; Shrinking Tunnel: 380V, 50Hz	Main Unit: 220V, 50Hz; Shrinking Tunnel: 380V, 50Hz	Main Unit: 220V, 50Hz; Shrinking Tunnel: 380V, 50Hz
Envelop Dimensions (Main Unit)	5000×1105×1450mm	5000×1105×1450mm	5000×1105×1450mm	5000×1105×1450mm
Shrinking Machine Dimensions	2400×600×1700mm	2400×600×1700mm	2400×600×1700mm	2400×600×1700mm

Factory Prices! WhatsApp/Phone: +86 13838385752.

Working Principle of Horizontal Packaging Machine

Packaging film transport → Forming → Product transport → Sealing and cutting → Finished product discharge

Film Material Conveying and Positioning System

First, a servo-driven film feeding system pulls the packaging film from the roll. Photoelectric sensors detect printed marks in real time, ensuring pattern alignment with an error range controlled within ±0.3mm. The guide rollers then fold the film into a U-shaped channel, allowing the product to enter the forming area.

Longitudinal Sealing (Back Sealing)

The machine forms the film into a cylindrical packaging structure. The overlapping edges of the film are sealed by heated longitudinal sealing rollers. A PID temperature control system ensures heating, preventing overheating or film burn-out. In case of abnormalities, the machine automatically stops to protect the product and equipment.

Product Conveying and Positioning

The formed film tube is conveyed forward by a belt system. An encoder system controls the product spacing, ensuring consistent packaging length and alignment. For fragile products, a cushioning design prevents squeezing or deformation during transport.

Transverse Sealing and Cutting

The pneumatic sealing and cutting pliers seal the tail of the current product, forming the rear seal of the packaging. The rear sealing and cutting pliers seal the head of the next product, forming the front seal.

Applications of Pillow Bag Packaging Machine

• Puffed and crispy foods: Instant noodles, potato chips, shrimp chips, rice cakes, and various puffed snacks. These products require packaging with excellent sealing properties.
• Baked goods: Including bread, mooncakes, cookies, wafer rolls, and soft candies.
• Frozen foods: Ice cream and frozen desserts. The equipment supports sealing in low-temperature environments.
• Other products: Including chocolate, candies, dried fruit, and small tea bags. These products are suitable for moisture-proof packaging.

Features of Pillow Pouch Packaging Machine

• Triple-Servo Control System: The machine utilizes a full servo drive system, enabling automatic adjustment of packaging bag length without manual intervention.
• Intelligent Fault Diagnosis: Built-in self-diagnosis capabilities allow the system to detect and display faults, thereby reducing downtime.
• PID Temperature Control: Each sealing unit features independent temperature control to accommodate various packaging materials.
• Photoelectric Tracking: A photoelectric eye system ensures precise color mark tracking and cutting positioning, guaranteeing packaging consistency.
