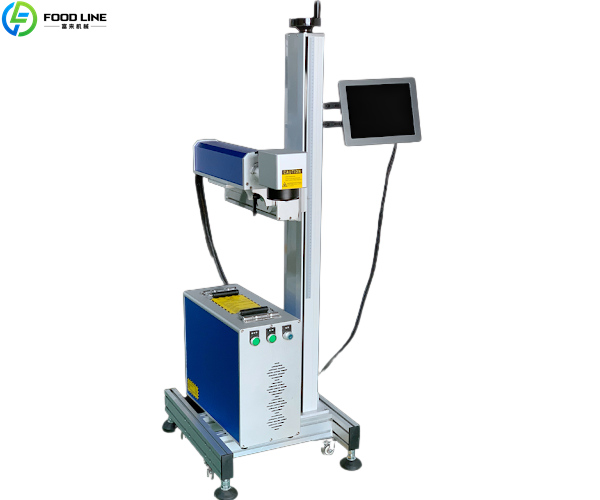

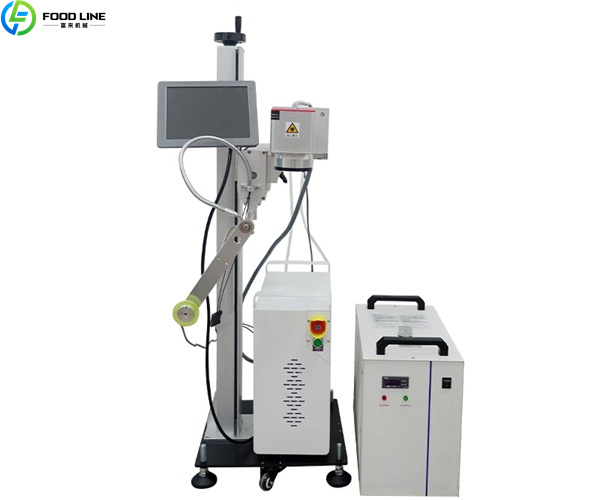

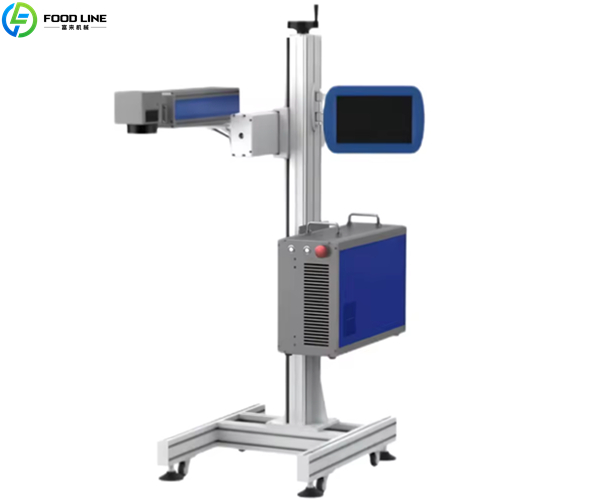

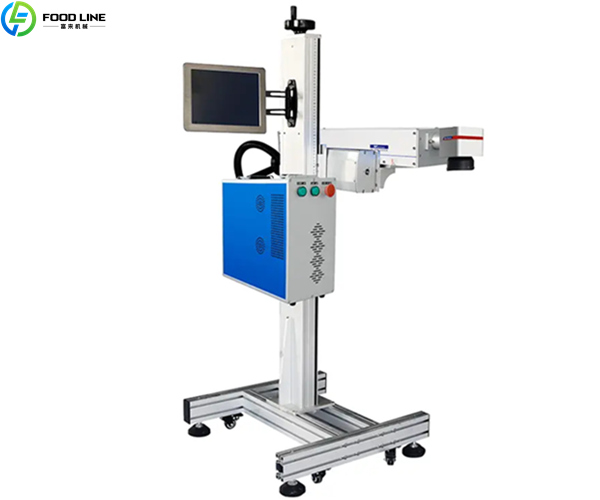

The UV flying laser marking machine is a next-generation high-speed continuous marking system designed to boost productivity. It is equipped with an industrial-grade JPT solid-state UV laser source, offering excellent beam quality, high reliability, and long service life. With a marking speed of up to 200 meters per minute (single-line character height 2 mm), it is one of the fastest coding systems in the industry.
The machine supports automatic serial numbers, batch codes, dates, barcodes, and QR codes. Its compact design and flexible mounting options make it easy to integrate into existing production lines. Welcome to consult! WhatsApp/Phone: +86 13838385752.
Parameters of Laser Marking Machine
| Parameter | Specification |
|---|---|
| Wavelength | 10.6 μm |
| Continuous Output Power | 40W |
| Power Stability | ±3% |
| Beam Quality | M² < 1.2 |
| Beam Diameter | 1.8 ± 0.2 mm |
| Beam Divergence | 7.5 ± 0.5 mrad (full angle) |
| Polarization | Linear polarization (>100:1), parallel to width direction |
| Operating Frequency & Duty Cycle | 0–25 kHz, 0–100% DC |
| Weight | 6.6 kg (14.5 lbs) |
| Dimensions (L×W×H) | 357 × 92.5 × 142 mm (14.1 × 3.64 × 5.59 in) |
| Input Voltage | 24 VDC ± 2% Max average current: 12A Power supply must support peak current: 18A, ≥1 ms |
| Thermal Load | < 575 W |
| Maximum Housing Temperature | < 60°C (140°F) |
| Operating Ambient Temperature | 5°C to 40°C (41°F to 104°F) |
| Operating Altitude | < 2000 m (6500 ft) |
| Humidity | Non-condensing |
| Shipping & Storage Environment | -10°C to 60°C (14°F to 140°F), non-condensing |
UV Flying Laser Marking Machine Features
- Ultra-fast marking: Speeds up to 200 m/min are ideal for high-speed production environments.
- High-quality UV laser source: JPT solid-state UV lasers offer high photoelectric conversion efficiency, excellent beam quality, and are maintenance-free.
- Flexible integration: The compact marking head rotates 360° and features an adjustable bracket for vertical and horizontal movement, ensuring precise positioning.
- Extensive encoding capabilities: Supports date, batch, manufacturer details, serial numbers, barcodes, and QR codes, meeting the needs of various industries.
- Durability and stability: The compact resonant cavity design ensures stable output, long service life, and minimal downtime.
Free Quote! WhatsApp/Tel: +86 13838385752.
Advantages of UV Flight Laser Marking Machine
- High Productivity: With exceptional speed and precision, the UV flight laser marking machine maximizes production line output.
- Permanent and Clean Marking: Unlike inkjet printing, it creates clear, permanent marks without consumables, reducing long-term costs.
- Non-Contact Process: Ensures no damage to packaging materials. Safe for food, medical, and precision electronics applications.
- Eco-Friendly: No inks, solvents, or chemicals are required. A sustainable choice for environmentally conscious manufacturers.
- Low Maintenance: The reliable UV laser source requires minimal maintenance, minimizing downtime and maintenance costs.
Industries and Products Where Marking Machines Can Be Used
UV flying laser marking machines are widely used in a variety of industries and materials:
- Food and Beverage Packaging: Prints dates, batch numbers, and QR codes on bottles, cartons, and plastic film.
- Pharmaceuticals and Medical Devices: Prints anti-counterfeiting codes, manufacturing information, and traceability markings.
- Electronics: Prints on circuit boards, connectors, and components.
- Personal Care and Daily Necessities: Prints batch numbers and brand logos on cosmetics and household items.
- Tobacco and Alcohol: High-speed marking on labels, packaging, and glass bottles.
- Chemicals and Construction Materials: Clearly marks PVC, PE, PPR pipes, and other industrial materials.
This laser marking machine can process plastics, PVC, PPR, PE and other non-metallic materials, providing solutions for products made of different materials.
Customer Success Stories
Case 1
A Russian beverage factory replaced inkjet technology with our UV flying laser marking machine. Achieving high-speed coding at 200 m/min, it improved production efficiency and anti-counterfeiting effectiveness.
Case 2
A German medical device company introduced a laser coding machine. This machine enabled clear serial numbers and QR codes on medical consumables, meeting stringent traceability requirements.
Case 3
A Brazilian cosmetics brand uses a laser coding machine to mark dates and batch numbers on plastic packaging. The resulting markings are clear and enhance the product’s quality.
About Foodline Equipment
- Extensive Experience: We have extensive export experience and have provided equipment to customers worldwide for many years.
- Reliable Quality: Our equipment is CE-certified. Every unit undergoes rigorous testing before shipment to ensure long-term stability.
- Tailored Solutions: Flexible installation options are designed to fit the specific layout of your production line.
- One-Stop Service: From installation to training to after-sales service, we ensure your equipment is ready for operation.
Whether you produce food, pharmaceuticals, electronics, or packaging materials, this laser coding machine can help you achieve your goals. Contact us today for more information and a quote! WhatsApp/Phone: +86 13838385752.
