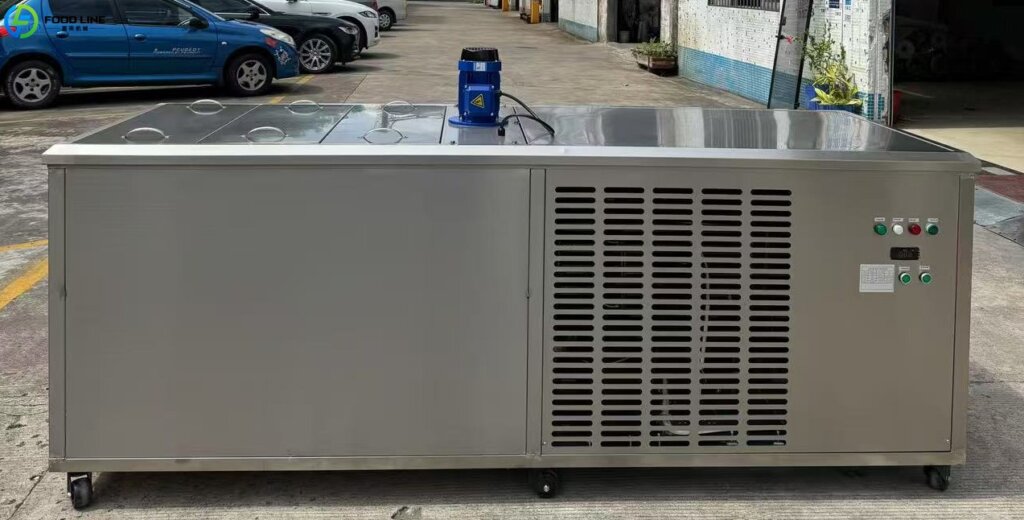

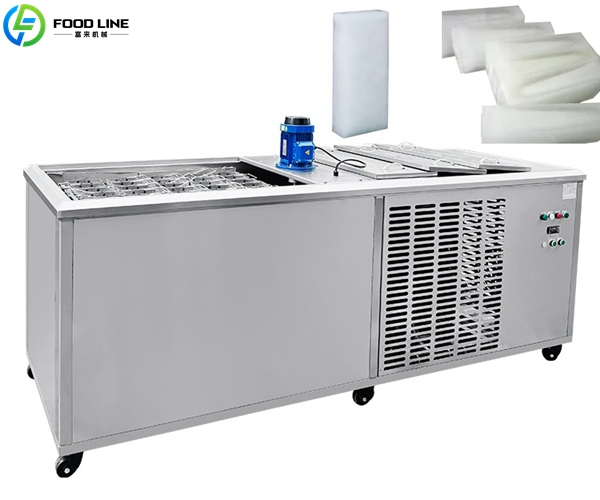

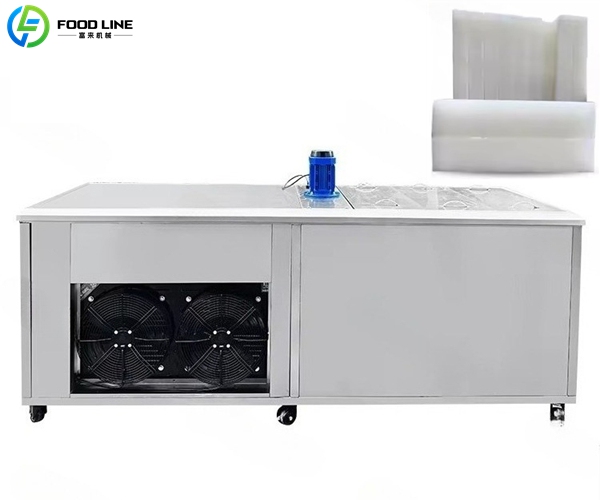

The commercial block ice machine is a high-efficiency ice-making unit suitable for industries such as seafood processing, port cold chain logistics, and large-scale food supply chains. This equipment has a daily production capacity of 1 ton of ice blocks. Please contact us for a quote! WhatsApp/Phone: +86 13838385752.
Specifications of Block Ice Machine
Model
FL – IB01
Daily Production Capacity
1 ton / 24 hours
Ice Block Size & Weight
150 × 70 × 600 mm // 5 kg

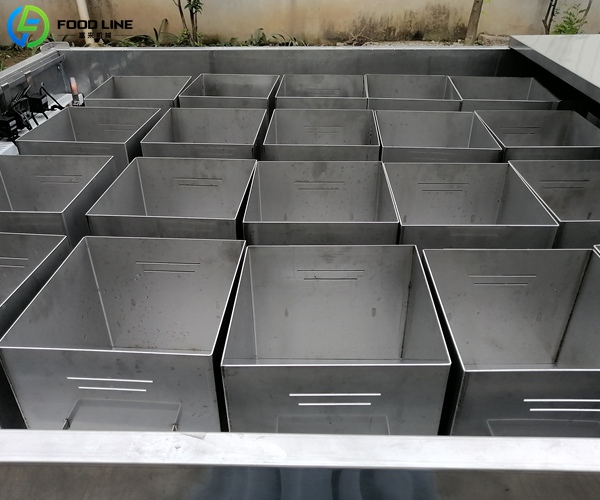

Number of Molds
10 pcs
Ice-Making Cycle
Every 4 hours
Voltage
220V / 50Hz
Power Consumption
2 kW
Compressor
2P
Refrigerant
R22 / R410A
External Dimensions (L×W×H)
1405 × 750 × 1002 + 260 mm
Net Weight
186 kg
Factory Prices! WhatsApp/Phone: +86 13838385752.

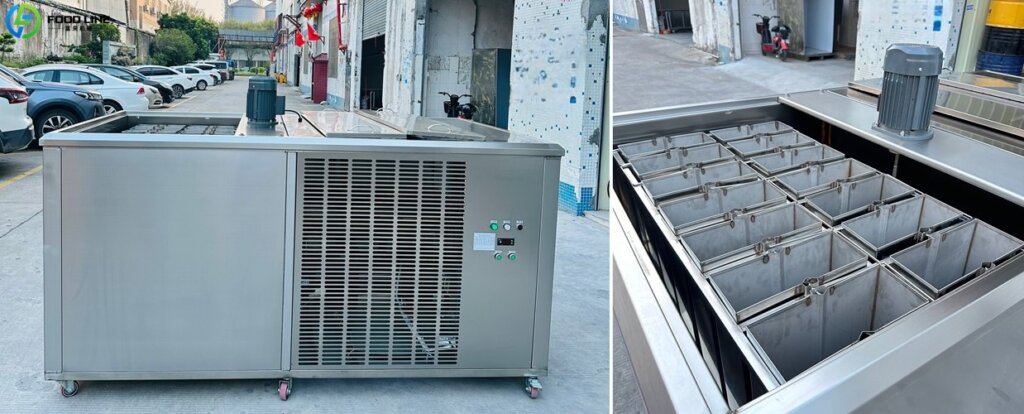

commercial cube ice device
Features of Commercial Ice Block Machine
Intelligent Ice Release
The equipment features an infrared-based intelligent ice-release system that enables automated ice detachment. A cold chain enterprise reported a release time as short as 90 seconds per cycle and an overall energy consumption reduction of approximately 15%. A PLC-based control system automates the entire process—from ice making to ice release—thereby lowering labor costs and enhancing operational safety.
Ice Purity
Testing shows the ice achieves a Shore hardness of 75 and exhibits no significant melting during three hours of transport. The equipment utilizes a three-stage filtration system to limit impurity levels to ≤0.5 mg/L, meeting standards for ice used in beverages within the food and beverage industry. This high-purity ice is suitable for food processing and high-standard foodservice supply chains.
Production Capacity
This ice maker is equipped with a high-efficiency refrigeration system featuring a branded twin-screw compressor. It has a daily production capacity of 1 ton, making it suitable for large-scale cold chain centers and the food service industry.

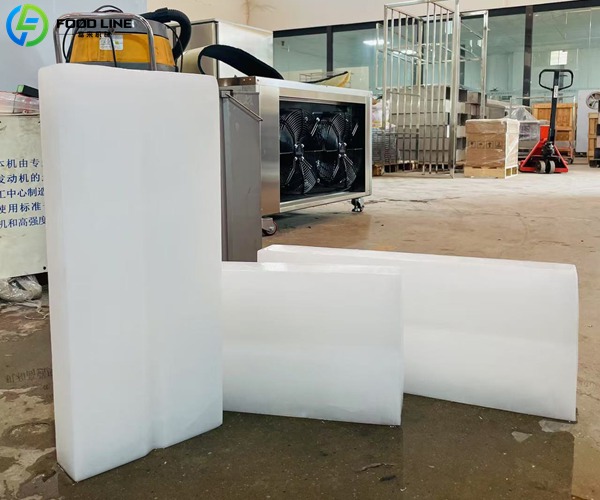

Density
Block ice features large dimensions and high density, resulting in a small surface area exposed to the surroundings. It melts slowly and offers superior cooling performance compared to crushed ice, making it ideal for long-term preservation and transport.
Block ice is suitable for use in the food and beverage industry, hotels, medical facilities, industrial refrigeration, and other sectors. As the ice is clean and hygienic, it meets standards for human consumption.
What are the components of a commercial ice making machine?
The main components of a block ice machine include the compressor, condenser, expansion device, and evaporator.
What refrigerant does the equipment use?
The equipment requires propylene glycol as the refrigerant. The freezing points are -30°C and -35°C.
Is the machine noisy when running?
The sound level is low. The equipment operates quietly.
Foodline is a supplier specializing in food processing machinery, with a focus on equipment for meat, fruits and vegetables, and flour-based products. Our equipment is highly efficient and energy-saving, and we are committed to providing customized solutions to clients worldwide. In addition to machines for square ice cubes, we also offer tube ice making machines. Please contact us for a quote! WhatsApp/Phone: +86 13838385752.
